Weight distributing hitches, equalizer hitches by Draw Tite

Draw-Tite has combined the best of the features fro all of our weight-distributing kits to create the new Heavy-Duty Trunnion Kit. It includes a new head design for superior strength and easy adjustment.
The head includes a cast steel raised ball platform and cast steel Trunnion mounts. The channel of the head utilizes our "serrated washer" design. The serrated washers make it easier to dial in the set up of the Heavy-Duty Weight-Distributing Kit.

Available in 600, 800, and 1,200 lb. Tongue Weigh Models

In addition to the changes in the head, the Heavy-Duty Weight-Distributing Kit includes the highest rated spring bars per class in the industry. They also feature an integrated cam for easy set up with the Optional Dual Cam High-Performance Sway Control. Other features include 9-link chains for easier set up on larger trailer frames and innovative snap-up brackets and designed for superior strength and durability

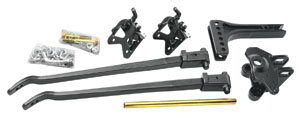

Trunnion Bar Weight-Distributing Hitch Kits

Includes Shank 63970
Raised Hitch ball platform eliminates the need for raised hitch balls
Easy-to-use serrated washer
Forged ball platform and spring bar mounts
Rated up to 1200 lbs. TW and 12,000 lbs. GTW

Part No.	Description	Maximum Payload Capacity		WT.	Price
Part No.	Description	TW	GTW	WT.	Price
62540	Trunnion Bar WD Hitch Kit Includes Shank	600 lbs.	10,000 lbs.	66.0	$269.95
62541	Trunnion Bar WD Hitch Kit Includes Shank	800 lbs.	10,000 lbs.	68.0	$269.95
62542	Trunnion Bar WD Hitch Kit Includes Shank	1,200 lbs.	12,000 lbs.	76.0	$269.95
Note: Shank (Shown Below) Hitch Ball sold separately.

For Sway Control Click Here

Weight-Distributing Hitch Shanks


All Shanks Shown Above Have A 1,200 Lbs. (TW) Capacity

For use with all Round Bar and Trunnion Bar weight-distributing hitches
Will NOT Work With Tow Beast weight-distributing hitches

Part No.	Style	Shank Bar Length	Length		Drop		Rise		Price
Part No.	Style	Shank Bar Length	Round	Trunnion	Round	Trunnion	Round	Trunnion	Price
3210	1	10"	12 1/2"	11 7/8"	2 3/8"	1 5/8"	5 5/8"	6 3/8"	$89.97
3211	2	11"	12 1/2"	11 7/8"	5 5/8"	4 7/8"	8 7/8"	9 5/8"	$97.00
3212	1	12"	14 1/2"	13 7/8"	2 3/8"	1 5/8"	5 5/8"	6 3/8"	$96.43
3213	2	12"	14 1/2"	13 7/8"	5 5/8"	4 7/8"	8 7/8"	9 5/8"	$103.27
3214	1	14"	16 1/2"	15 7/8"	2 3/8"	1 5/8"	5 5/8"	6 3/8"	$102.70
3215	2	11"	13 3/4"	13 1/8"	6 7/8"	6 1/8"	10 1/8"	10 7/8"	$91.87
3344	3	11"	13 1/2"	12 7/8"	8 3/4"	8"	N/A	N/A	$99.00

For Sway Control Click Here

Adjustable Shank

Part No.	Description	Total Ht Adj	Length (L)	Rise (R)	Drop	Price
63970	Adjustable Shank 2" sq. (standard cast)	6-3/4"	13"	6"	1-1/4"	$84.95
54917	Adjustable Shank 2" sq. (standard cast)	16-1/4"	14"	10-1/4"	6"	$109.95

For Sway Control Click Here

Pole Tongue Adapter

A Pole Tongue Adapter is used as a mounting platform for the hook-up brackets of a weight-distributing hitch system when a trailer has a pole or straight tongue rather than an A-frame tongue.

3280 Assembled

3280

Fits All Lift Units Regardless of Manufacturer

Fits Tongue Widths from 1 5/8" to 5"

Fits Tongue Heights from 3" to 6"

Part No.	WT.	Price
3280	13 lbs	$62.95
3360	13 lbs	$62.95

Weight-Distributing Chain Hangers

Part No.	Description	WT.	Price
58305	Wt.-Dist. Part, Chain Hanger, Bolt On	8.0	$38.95
58306	Wt.-Dist. Part, Chain Hanger, Clamp On	8.0	$42.95

Weight Distributing Snap-Up Brackets

Part No.	Description	WT.	Price
6637	Lift Unit Bracket Assembly	14.0	$59.95
21501	Snap Up Bracket	15.0	$39.95
58162	Snap Up Handle	2.0	$5.95
