Heavy-Duty Round Bar Style Weight-Distributing Hitch Systems
|
|
| |
|
The Draw-Tite
Round Bar Weight Distributing Kit. features easy-to-use adjusting blocks
for easier and faster ball mount angle adjustment. It includes a one-piece
cast head, snap-up brackets and chains; spring bars include an integrated
cam for use with optional dual cam sway control
|
|
Available in 550, 750, and 1,000 lb. Tongue Weigh Models
|
In
addition to the changes in the head, the Heavy-Duty Round Bar
Weight-Distributing Kit includes the highest rated spring bars per class
in the industry. They also feature an integrated cam for easy set up with
the Optional Dual Cam High-Performance Sway Control. Other features
include 9-link chains for easier set up on larger trailer frames and
innovative snap-up brackets and designed for superior strength and
durability |
|

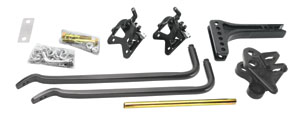

Round Bar
Weight-Distributing Hitch Kits
- Includes Shank 63970
- One piece cast head
- Easy-to-use adjusting washer
- Rated up to 1000 lbs. TW and
10,000 lbs. GTW
|
|
|
|
|
|
|
| |
 |
|
|
|
|
|
|
Weight-Distributing
Hitch Shanks |
|
| |
|
|
|
|
|
All
Shanks Shown Above Have A 1,200 Lbs. (TW) Capacity
|
|
|
|
|
|
|
For use with
all Round Bar and Trunnion Bar weight-distributing hitches
Will NOT Work With
Tow Beast weight-distributing
hitches |
|
|
|
|
|
| |
|
|
|
|
Adjustable
Shank |
 |
Part
No. |
Description |
Total
Ht Adj |
Length
(L)
|
Rise
(R)
|
Drop
|
Price |
|
| 63970 |
Adjustable
Shank 2" sq. (standard cast) |
6-3/4" |
13" |
6" |
1-1/4" |
$84.95 |
|
| 54917 |
Adjustable
Shank 2" sq. (standard cast) |
16-1/4" |
14" |
10-1/4" |
6" |
$109.95 |
|
|
|
|
| |
|
|
|
|
|
|
|
|
A
Pole Tongue Adapter is used as a mounting platform for the hook-up brackets
of a weight-distributing hitch system when a trailer has a pole or straight
tongue rather than an A-frame tongue.
|
|
3280 Assembled
|
3280
|
|
|
|
|
|
Weight-Distributing
Chain Hangers
|
|
|
|
|
Weight
Distributing Snap-Up Brackets
|
|
|
|
| |
|
|
|
|
|
|
HITCH BALLS
